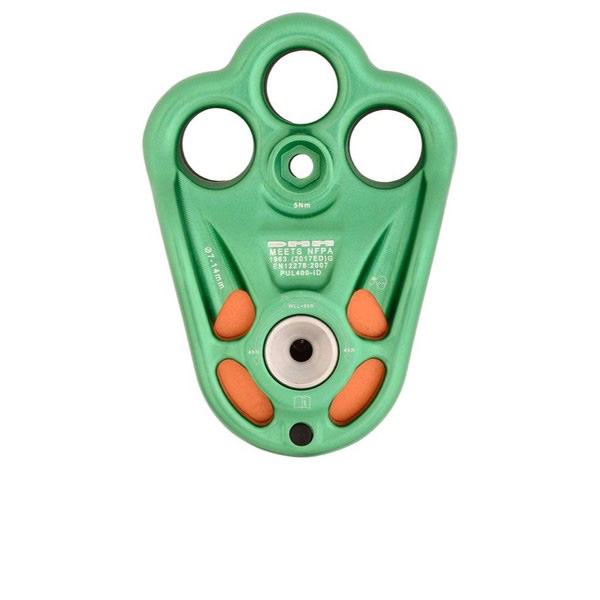

DMM RIGGER Pulley
Rope: 14 mm | 176 g | 40 kN | roll diameter: 28 mm
![](https://skyman-cz.s9.cdn-upgates.com/x/x6638c16c1911d-helper.jpg)
Description DMM RIGGER Pulley
DMM RIGGER Pulley
Rope diameter: 7-14 mm
Certification: EN 12278, EN 795 B
Certification: EN 12278, EN 795 B
Limit load (MBS): 40 kN
Working load (WLL): 8 kN
Weight: 176 g
Roll diameter: 28 mm
Bearing: ball bearing
Dimensions: 68 x 94 mm

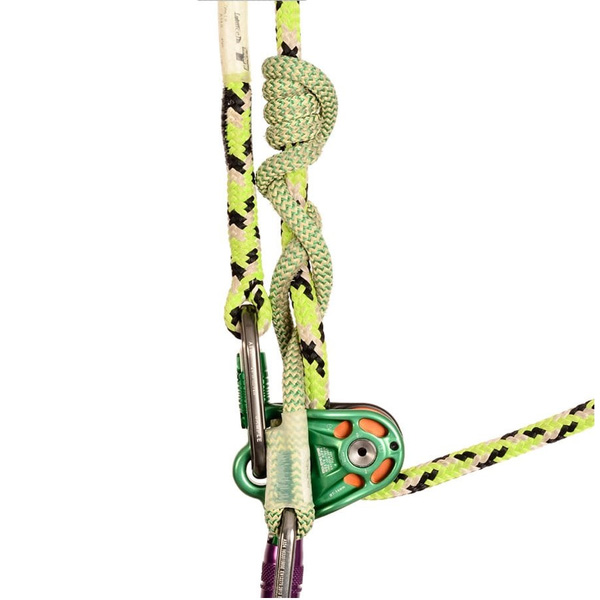

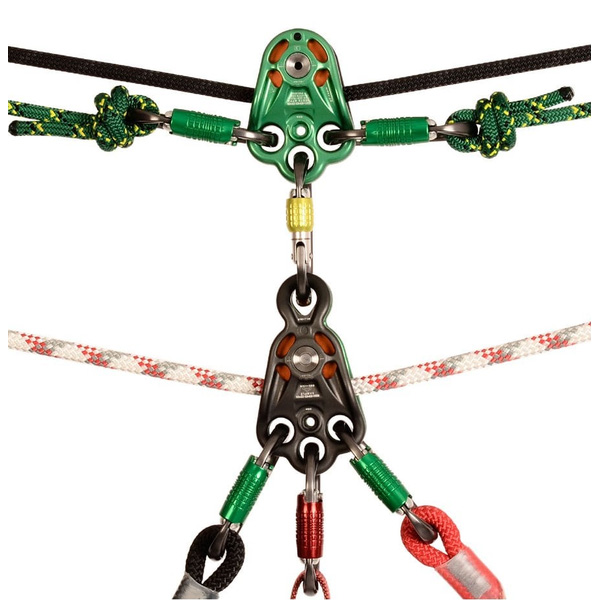

A pulley with a triple connection , which can also serve as an anchor plate .
This enables a creative and economical grouping of components.
The free sides can be fixed with a screw with a nut.
The RIGGER pulley is hot-forged - this achieved high strength (40kn) and a low weight of 176g.
Its reinforced rounded edges are designed to increase durability,
but at the same time they are modeled for smooth and efficient operation of the Prussians.
Ball bearings maintain the standard of the highest quality of DMM products.
Thanks to the high strength of 40 kN, it can also be used as a starting pulley
for handling lighter loads (approx. 400 kg).
Rope diameter up to 14 mm.
Working load (WLL): 8 kN
Weight: 176 g
Roll diameter: 28 mm
Bearing: ball bearing
Dimensions: 68 x 94 mm
A pulley with a triple connection , which can also serve as an anchor plate .
This enables a creative and economical grouping of components.
The free sides can be fixed with a screw with a nut.
The RIGGER pulley is hot-forged - this achieved high strength (40kn) and a low weight of 176g.
Its reinforced rounded edges are designed to increase durability,
but at the same time they are modeled for smooth and efficient operation of the Prussians.
Ball bearings maintain the standard of the highest quality of DMM products.
Thanks to the high strength of 40 kN, it can also be used as a starting pulley
for handling lighter loads (approx. 400 kg).
Rope diameter up to 14 mm.
A version with a RIGGER BECKET lower connecting eye is also available on order.
